1x16 PLC Splitter for Options
1x16 PLC Splitter FAQs & Guide
1×16 PLC Splitter Blockless, ABS Box, LGX Type, Plastic Cassette and Rack Mount for options.
PLC Splitter is short for Planar Lightwave Circuit Fiber Optic Splitter. PLC splitters are used to distribute or combine optical signals. 1×16 PLC Splitter is based on planar lightwave circuit technology and provides a low cost light distribution for multi fiber connections solution in different optical distribution network area.
1×16 PLC Splitters provide a cost effective and space saving choice for your ftth fiber cablings. You can use 1×16 PLC Splitter blockless type in a fiber distribution box with easy access. With it’s compact size, these splitters can be utilized in in-ground and aerial pedestals as well as rack mount systems.
Installation is simple using a variety of connector types or fusion splicing.
How to use the 1×16 PLC Splitters
1×16 Bare Fiber PLC Splitter is usually used as a passive fiber optic components for other fiber optic equipment. You need to splice the bare fiber with other fiber in a fiber optic device.
Blockless Type 1×16 PLC Splitter can be used inside a fiber optic distribution box or outdoor fiber termination box or an ODF rack mounted type to be ready as a fiber optic equipment for more complex fiber optic connectivity with easy access.
ABS Box 1×16 PLC Splitter can be customized with 2.0mm or 3.0mm fiber optic cable jacket with different SC LC FC ST connectors. You can also use abs box plc fiber splitter inside a fiber termination box.
Plastic Cassette 1×16 PLC Splitter is made of a plastic module box with a blockless fiber plc splitter inside. You can connect them with different fiber adapters for easy and fast connection to subscribers in a fiber optic distribution box.
Mini Plugin 1×16 LGX Type PLC Splitter is designed to insert into a ODF rack mount 3U with high density fiber optic connections. You can use it easily.
Rack Mount ODF 1×16 PLC Splitter is often including a ABS box type PLC Splitter inside a Rack mounted ODF. Usually it is of 1×16, 1×32, 1×64 PLC splitter inside.
1×16 PLC Fiber Optic Splitters Features:
- Singlemode PLC Splitters in Blockless, ABS Box, LGX Type, Plastic Cassette and Rack Mount ODF configurations
- Optical performance 100% factory tested with test report in package
- UPC, and APC polish types available for connectorized SC LC FC ST or other connectors
- Low Insertion Loss, Back Reflection and PDL
- Telcordia GR-CORE 1221 certified
1×16 PLC Splitters Specifications
- Operating Window: 1260~1650nm
- Polarization Stability (dB): 0.50dB
- Port Configuration: 1×16
- Back Reflection (dB):-55 UPC -65 APC
- Operating Temperature (†C): -20~+70
- Storage Temperature (†C): -40~+85
More Parameters for 1×16 Optical PLC Splitter
| Parameters | Value |
|---|---|
| Configuration Type | 1×16 Type |
| PLC Splitter Type | Blockless, ABS Box, LGX, ODF PLC Splitter |
| Connector Type | SC/APC, SC/UPC or Customized |
| Fiber Type | Singlemode G657A1 or G652D |
| Fiber Length | 1m or 1.5m or Requested |
| Package Style | Blockless Steel Tube |
| Operating Bandwidth | 1260~1650nm |
| Fiber Diameter | 0.9mm |
| Typical Insertion Loss (≤) dB | 13.2 |
| Insertion Loss (≤) dB | 13.7 |
| Loss Uniformity (≤) dB | 1.2 |
| Polarization Dependent Loss (≤) dB | 0.3 |
| Wavelength Dependent Loss (≤) dB | 0.5 |
| Return Loss (≥) dB | 50 |
| Directivity (≥) dB | 55 |
| Temperature Dependent Loss (≤) dB | 0.8 |

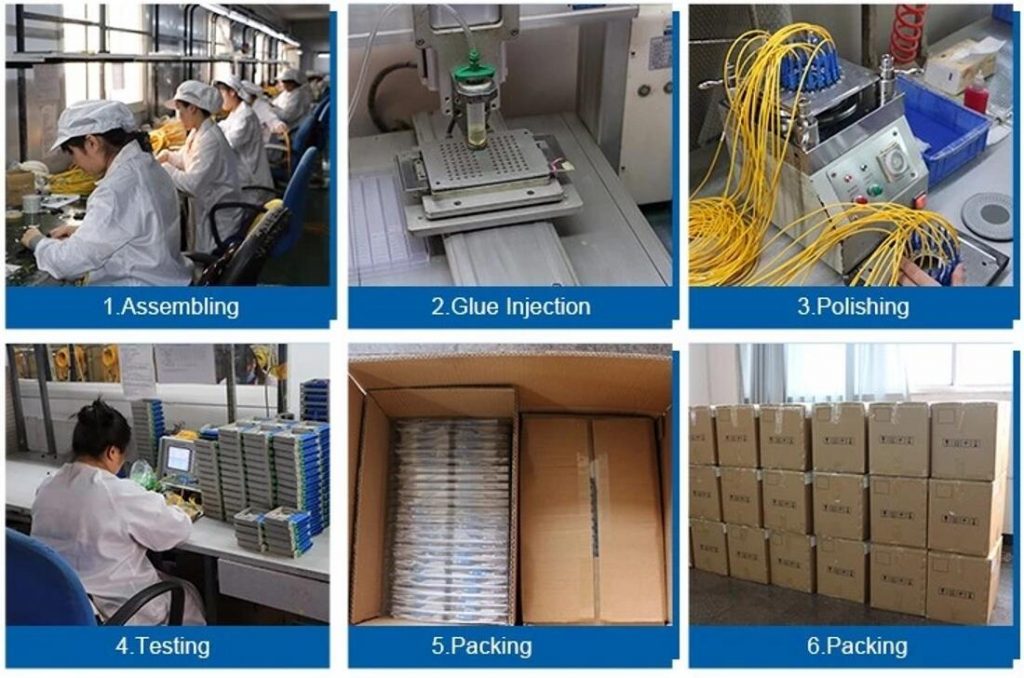

1×16 Optical PLC Splitter Production Process
