The indoor 86mm type FTTH Wall Outlet employs a compact plug-in design, combines a modern design concept, adopts imported plastic, is of a graceful appearance and applicable for FTTH, FTTO and FTTD, etc., and allows easy use in different installation environments.

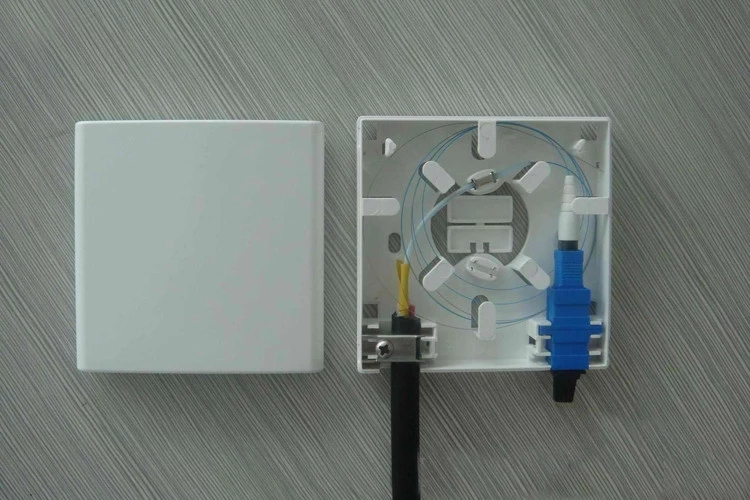

SC Fiber Wall Outlet Installation Image
The clasp design of the cover has greatly reduced the installation strength. This FTTH Wall Outlet is very thin and matches with other A86 panels in homes, and also meet the open or concealed cabling for optical cables. Coordinating with FC strip-type optical adaptor, it generates more options in term of fiber interfaces for users, all SC, LC and SC/FC are usable. In addition, the big diameter wrapping post in the box protects radically in an omnibearing way the optical fiber in this ftth fiber wall outlet.
FTTH Wall Outlet Features
Small size, light weight, use conveniently
ABS material, fireproof and dustproof
Radian appearance makes it slinky
Suitable for various modules and multimedia interfaces
Embedded chart and logo position make it easy to identity
Support MM or SM fiber connection
2 ports for SC simplex, LC duplex adapters
FTTH Wall Outlet Detailed information
Very thin and matches with other A86 fiber wall outlet in homes and also meet the open or concealed cabling for optical cables
Used in FTTH indoor application, home or work area
Provide users with optical access or data access
Suitable for 2 pcs SC adapters
May store surplus fiber inside, easy for operation
A user end product to realize optical fiber to desktop solution.
FTTH Wall outlet panel can be used in home or working area to accomplish double-core fiber access and port output.
Used in the end termination of residential buildings and villas, to fix and splice with pigtails.
FTTH Wall Outlet Specification:
Material: ABS plastic
Size: 86*86mm*23mm, 47g
